Learn With Jason (live in studio)

Noisee is an ephemeral visual audio experience shared with friends in a room. Everyone connects a microphone, then sees their noise combined with everyone elses noise.

Watch me rock it solo 🤘🏻💀 it's fun, and weird.

You can be soft, loud, or connect a Megaman Pocket Operator like a nerd.

I got to hang out in studio with Jason Lengstorf to share the tech, and CSS, that power the app.

Binge on YouTube.

See if you can find the 4 easer eggs in the app without watching the video 😈

The idea #

When Jason and I brewed up this in person shindig, I wanted to have a punky moment with him, like play electric guitar. Which we did!

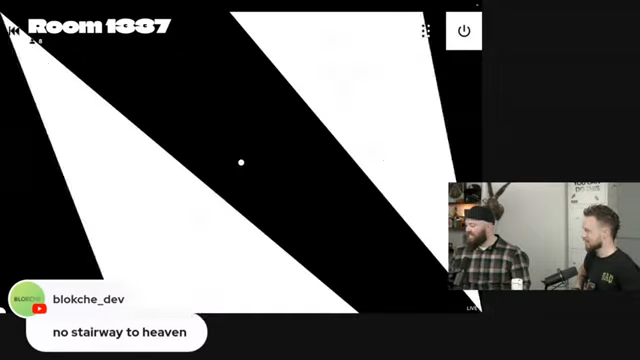

Noisee's Room 1337 interface with a chat message joking about Stairway to Heaven, and a webcam feed of Adam and Jason mid guitar bit

I also wanted it to be somethin weird, connected, and expressive.

How about audio over PartyKit, visualised with gradients‽

Rad.

Stream.start() #

I came prepared with some process artifacts to help folks see the dots I connected with web tech.

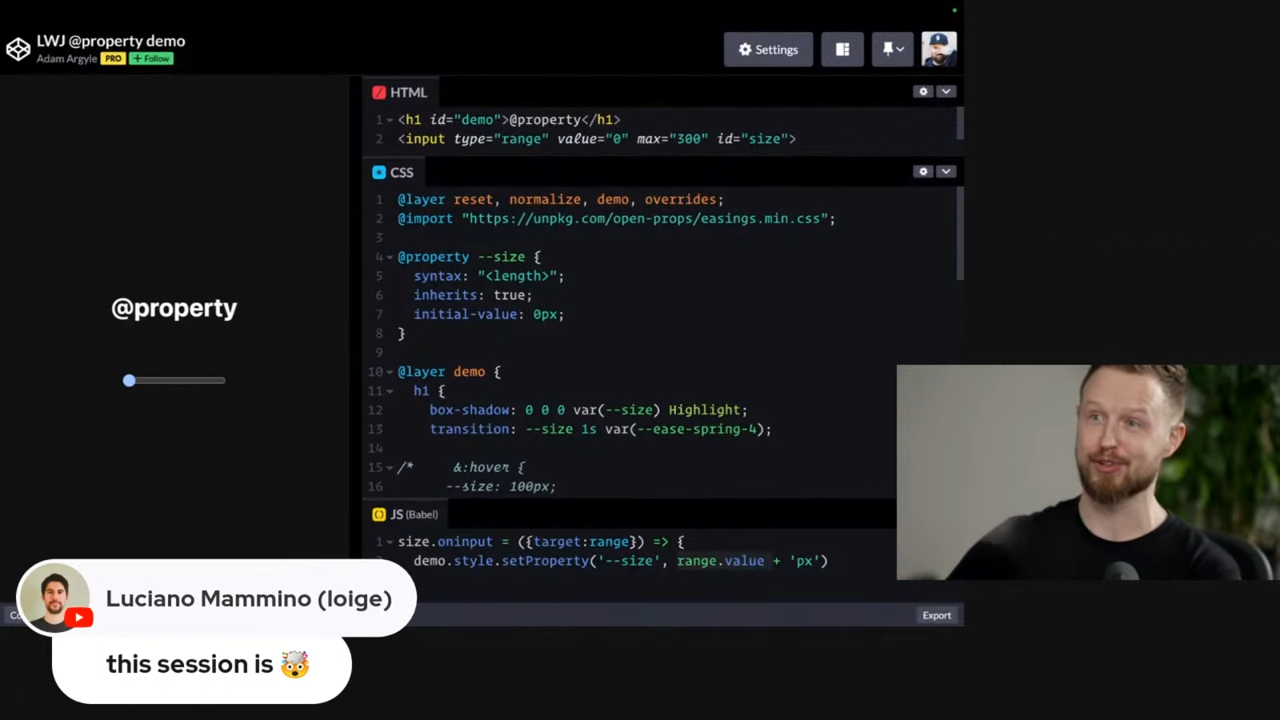

The first artifact/demo is an introduction to @property.

See the Pen <a href="https://codepen.io/argyleink/embed/preview/bGZaXXq"> by Adam Argyle (<a href="https://codepen.io/argyleink">@argyleink</a>) on <a href="https://codepen.io">CodePen</a>.

It delightfully derailed into details about CSS @layer and System Colors like Highlight and Canvas.

But also took a trip down memory lane for an early JS feature:

<button id="yo">…</button>

yo.onclick = …

No document.querySelector() needed, element ID's are on the window object. Woot woot.

I love it for demos.

Finally a gradient demo #

Once we'd ramped up on @property and kickflipped off it, I had another demo ready, this one on how the gradient reacting to audio would work.

In classic argyleink fashion, I use the gradient transition hint to control a hard line gradient.

html {
  transition: --size 1s var(--ease-spring-4);
  background-image: radial-gradient(
    circle at center,
    black 0,
    var(--size),
    white 0
  );
}

Hook that hint up to a range input, add some springyness for flare, and you got yourself an animated hard line gradient. Ready for a brutalist experiment, or a mask if you so fancy!

Try it for yourself if you like!

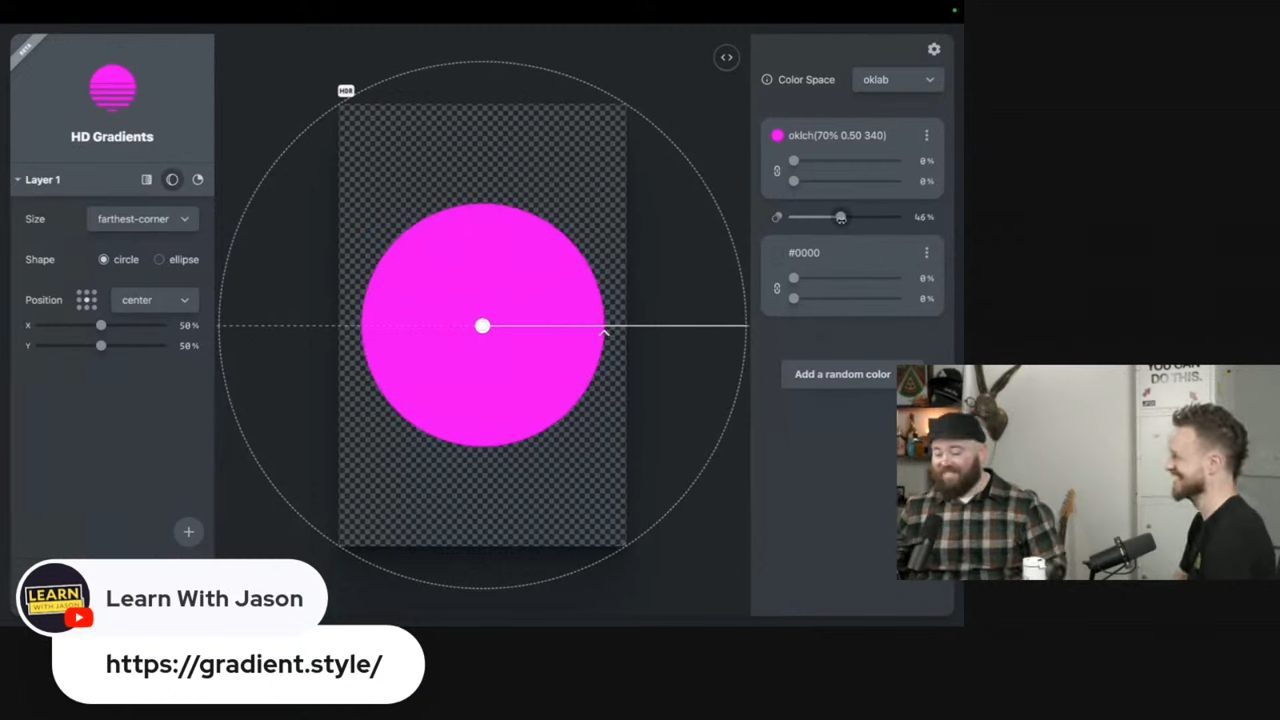

If you're interested in gradient transition hints, Jason and I visualize it on gradient.style. I show him how to make a radial gradient, 0 out the stop positions, then adjust the transition hint.

Connecting audio streams to CSS #

The next prototype is all about hooking up transition hints to audio streams. The UX here requires a few steps:

Asking for mic access
Choosing a mic (optional, a default will be chosen)
Making some noise

Javascript asks for the user's mic permission with:

await navigator.mediaDevices
  .getUserMedia({
    audio: {
      autoGainControl: false,
      latency: 0,
    },
  });

Then I create an AudioContext to interface with the streaming audio:

state.stream.audio = new AudioContext();

Then I do some fancy work to filter out a highpass and lowpass subset of stream data. This let's me have two pieces per person to use as fun data.

I then read values from the mic stream audio context at the animation framerate:

requestAnimationFrame(readMicStream);

Eventually I derive a lowpass low number and a highpass high number, and set the custom properties. This also means I no longer need to transition the @property because I'm now setting values with rAF.

html.style.setProperty("--frequency-low", low.value + "%");
html.style.setProperty("--frequency-high", high.value + "%");

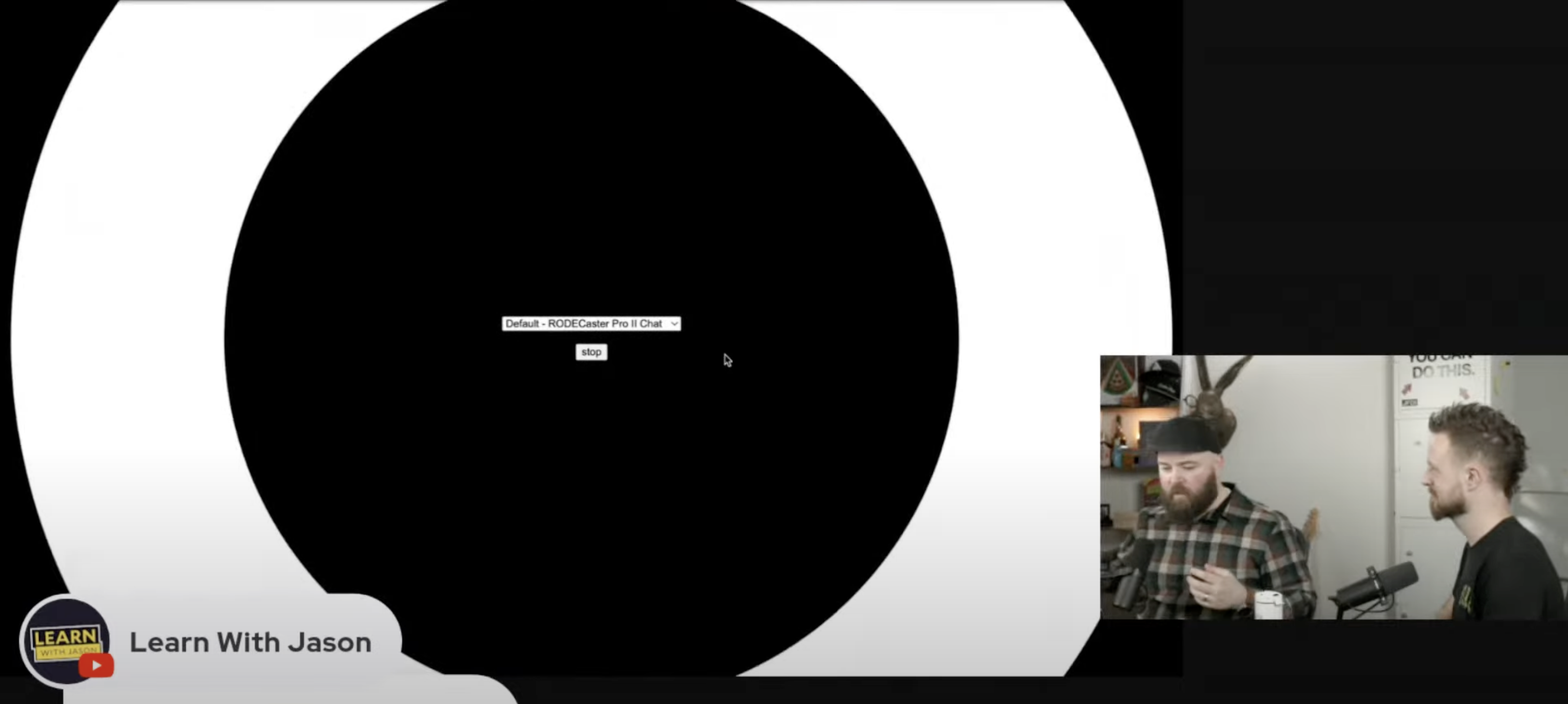

Since the demo needs HTML5 mic access, open this debug link and give the basic demo a try. Or watch Jason and I give the demo a whirl.

Go live while live streaming #

With that proof of concept demo, I took it and ran. Spent a week or so making a sweet app that connected your mic created gradients with other people.

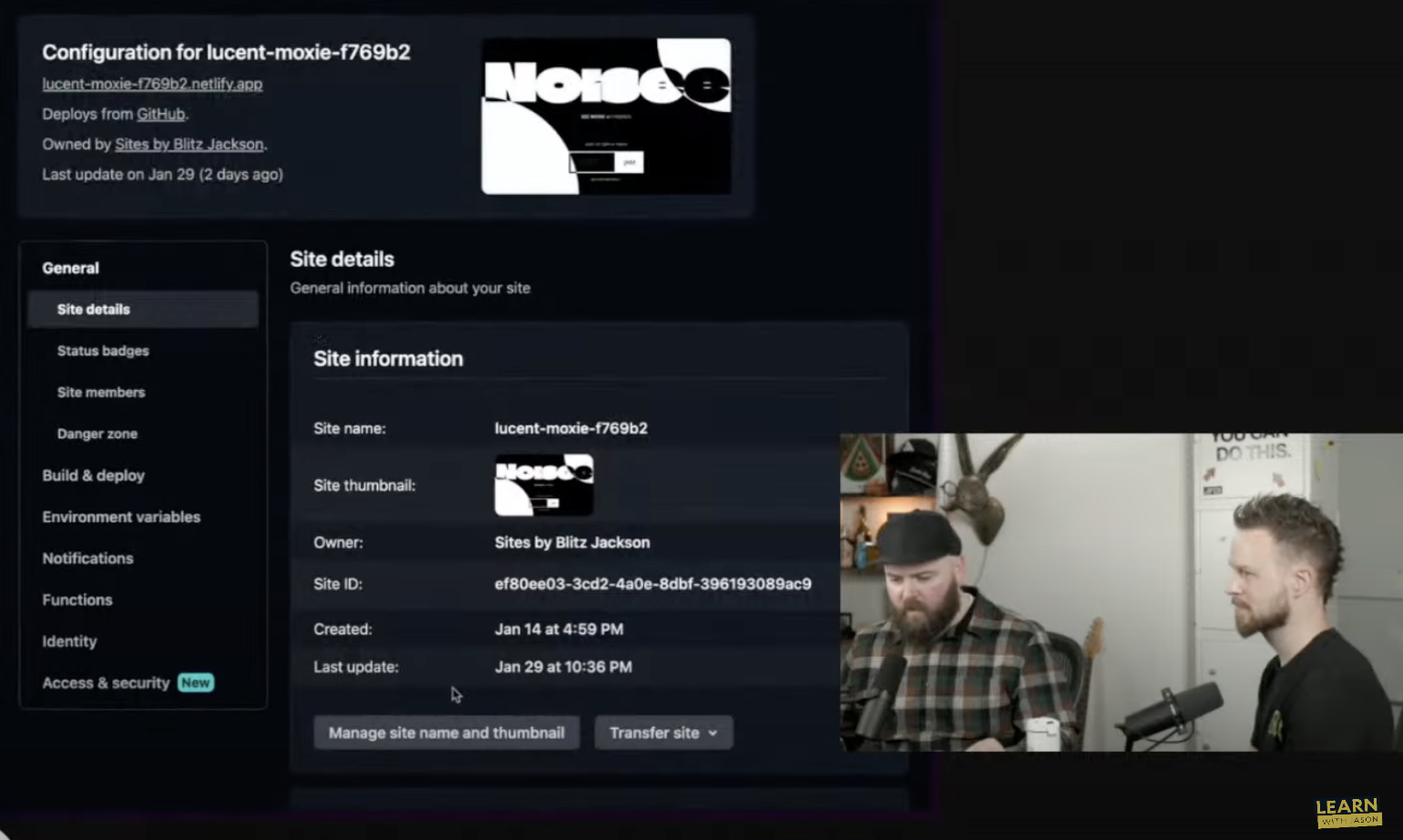

Jason and I make the deployment URL official and sent it to the folks on the live stream. Def a highlight moment of the stream. Tune into the recording, see the chaos that ensues!

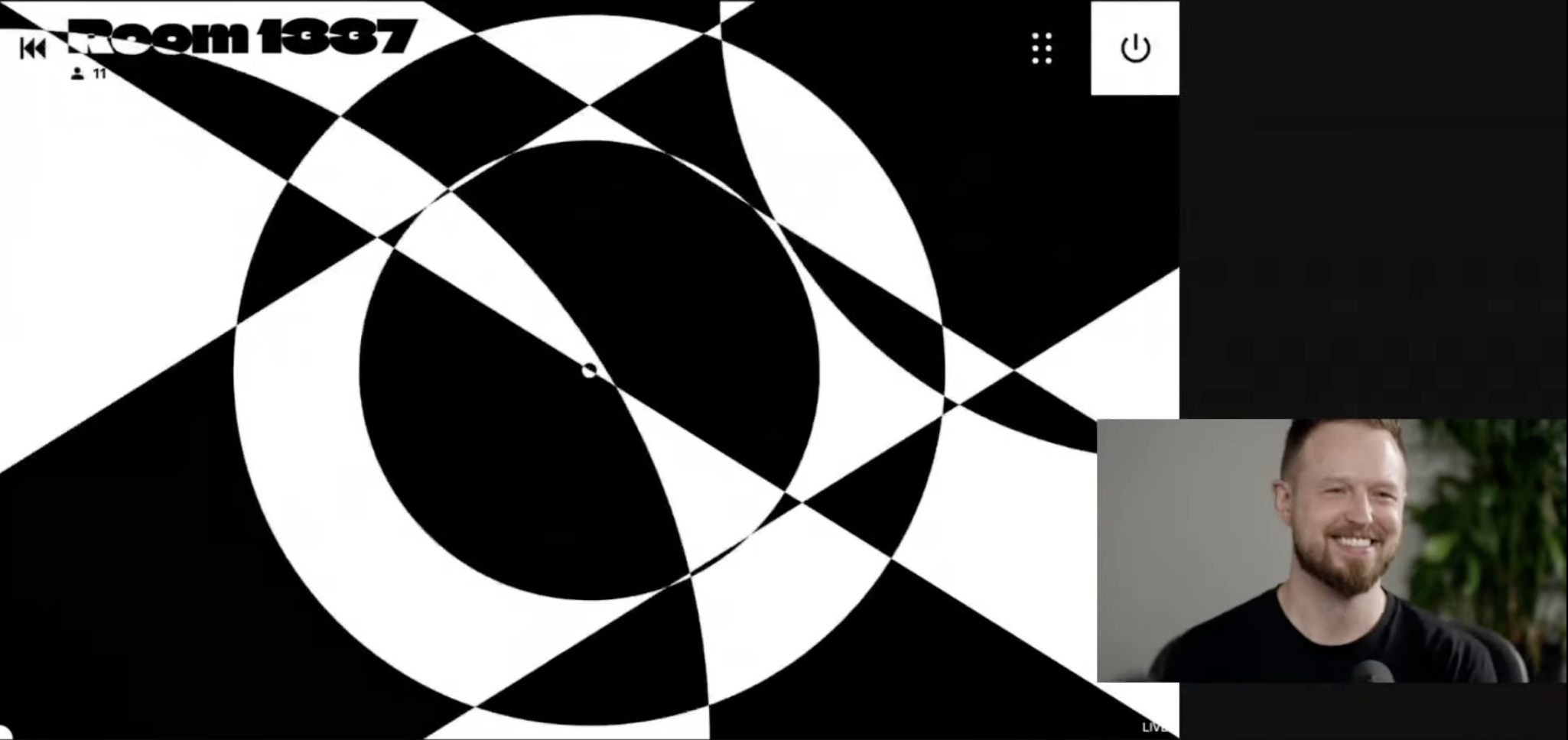

Noisee's Room 1337 with 11 people connected, their combined audio streams driving a chaotic black-and-white kaleidoscope of overlapping gradient shapes

We go on to discuss Svelte and PartyKit, diving into the code on GitHub.

Four easter eggs #

Can you find the 4 easter eggs without watching us find them on video?

Life after death
Turquoise
Give it the time of day
Take me with you

I had such a blast hangin out with Jason; and I'm happy to share we may have shot some more video while I was there… so maybe there's more to come!
