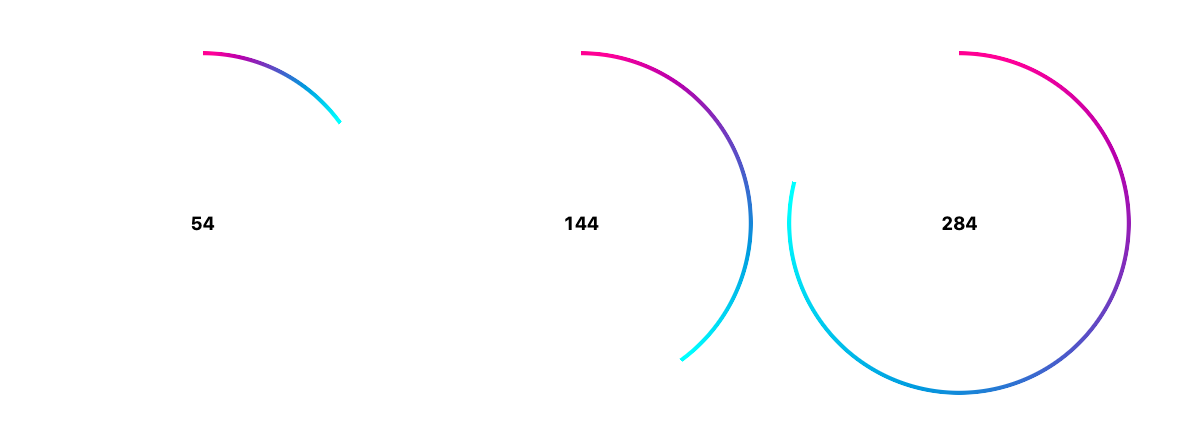

Three example states of the chart
My google avatar.2 min read

Circular gradient stroke chart

css

CSS masks and gradients are so rad, there's so much you can do with them.

This trick uses two gradients;

  1. a radial gradient mask, hiding the inner part of the conic
  2. a conic gradient, visible up to the angle, then transparent

Let's see some code #

Start with making a square, so it's easy to make a circle.

#pie {
  aspect-ratio: 1;
  inline-size: 50vmin;
  border-radius: 50%;
}

Now add the mask and conic gradient. Comments are inline as to why or what each part is doing.

#pie {
  --ng: 120deg; /* can be set via slider */
  --thickness: 3px;

  --_inner: calc(70% - var(--thickness));
  --_outer: calc(var(--_inner) + 1px); /* fixes aliasing */

  /* hides the inner part of the conic gradient/element */
  mask: radial-gradient(circle, #0000 var(--_inner), #000 var(--_outer));

  /* gradient up to --ng, transparent after --ng */
  background-image: conic-gradient(deeppink, cyan var(--ng), #0000 0);
}

The conic gives us the smooth gradient and the angle, while the mask and overall element shape, isolate a thin line of visibility into the conic gradient, completing the illusion.

Try it #

The Codepen hooks up a slider to the angle and some text, to help debug and control the effect.
